Product Summary
The K7I161882B-FC16 is a 512Kx36-bit, 1Mx18-bit DDRII CIO b2 SRAM.
Parametrics
K7I161882B-FC16 absolute maximum ratings: (1)Voltage on VDD Supply Relative to VSS: -0.5 to 2.9 V; (2)Voltage on VDDQ Supply Relative to VSS: -0.5 to VDD V; (3)Voltage on Input Pin Relative to VSS: -0.5 to VDD+0.3 V; (4)Storage Temperature: -65 to 150 ℃; (5)Operating Temperature: 0 to 70 ℃; (6)Storage Temperature Range Under Bias: -10 to 85℃.
Features
K7I161882B-FC16 features: (1)1.8V+0.1V/-0.1V Power Supply; (2)DLL circuitry for wide output data valid window and future freguency scaling; (3)I/O Supply Voltage 1.5V+0.1V/-0.1V for 1.5V I/O,1.8V+0.1V/-0.1V for 1.8V I/O; (4)Pipelined, double-data rate operation; (5)Common data input/output bus; (6)HSTL I/O; (7)Full data coherency, providing most current data; (8)Synchronous pipeline read with self timed late write; (9)Registered address, control and data input/output; (10)DDR(Double Data Rate) Interface on read and write ports; (11)Fixed 2-bit burst for both read and write operation; (12)Clock-stop supports to reduce current; (13)Single address bus; (14)Byte write (x18, x36) function; (15)Simple depth expansion with no data contention; (16)Programmable output impedance; (17)JTAG 1149.1 compatible test access port; (18)165FBGA(11x15 ball array FBGA) with body size of 13x15mm.

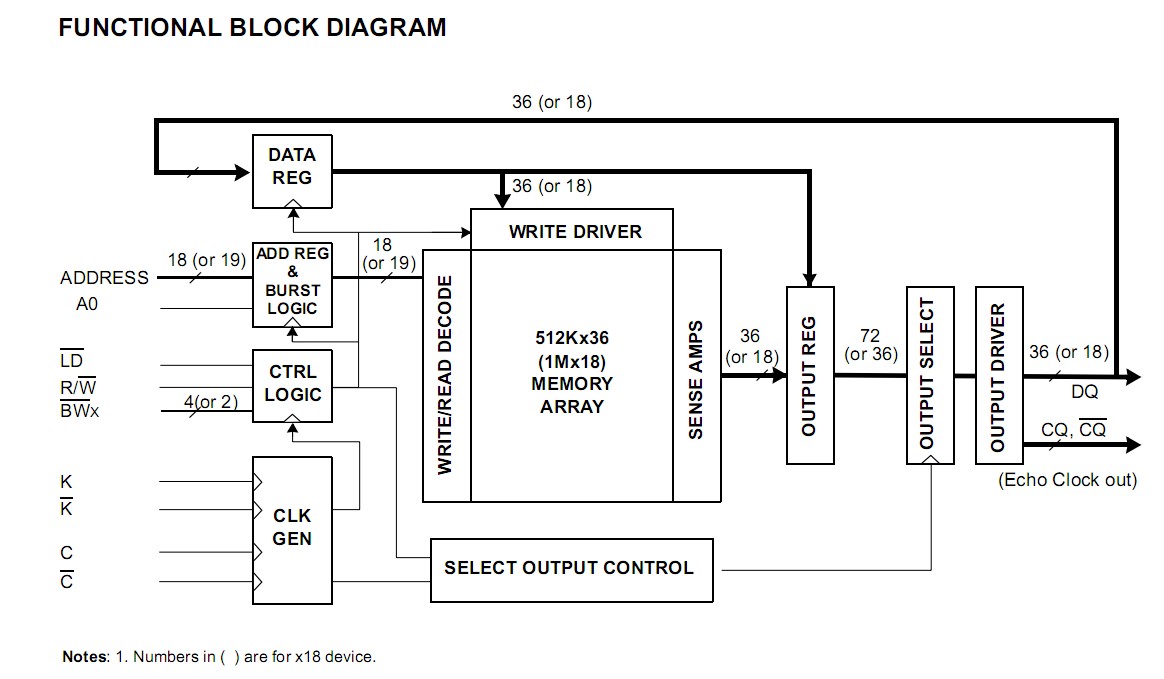

Diagrams
 |
