MAX742EWP

switch-mode regulator, 20-SOIC, 4.2V to 10V, DC-DC converter, ±2A

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.50

PartNumber:: MAX742EWP

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. vivian's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-25

From Other Seller

Part Number:MAX742EWP
US $0.10 - 0.50
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX742EWP is a kind of switch-mode regulator with +5V to ±12V or ±15V dual output. The MAX742EWP DC-DC converter is a controller for dual-output power supplies in the 3W to 60W range. Relying on simple two-terminal inductors rather than transformers, the MAX742EWP regulates both outputs independently to within ±4% over all conditions of line voltage, temperature, and load current.The MAX742EWP has high efficiency (up to 92%) over a wide range of output loading. Two independent PWM currentmode feedback loops provide tight regulation and operation free from subharmonic noise. The MAX742EWP can operate at 100kHz or 200kHz, so it can be used with small and lightweight external components. Also ripple and noise are easy to filter. The MAX742EWP is widely used in DC-DC converter module replacement, distributed power systems and computer peripherals.

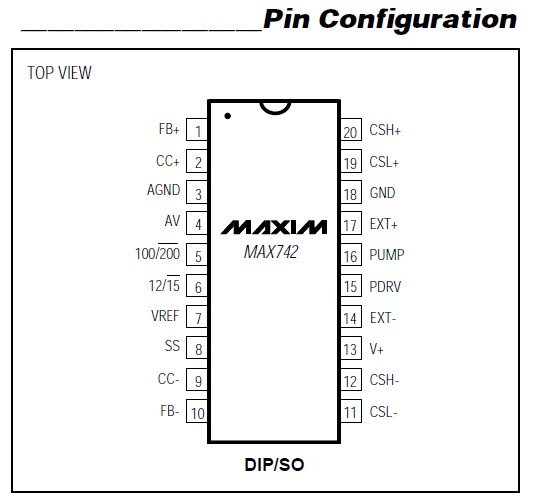

Parametrics

MAX742EWP absolute maximum ratings: (1)V+, AV+ to AGND, GND: -0.3V to +12V; (2)PDRV to V+: +0.3V to -14V; (3)FB+, FB- to GND: ±25V; (4)Input Voltage to GND (CC+, CC-, CSH+, CSL+, CSH-, CSL-,; (5)SS, 100/200, 12/15): -0.3V to (V+ + 0.3V); (6)Output Voltage to GND: (EXT+, PUMP): -0.3V to (V+ + 0.3V); EXT- to PDRV: -0.3V to (V+ + 0.3V); (7)Continuous Power Dissipation (any package) up to +70℃: 500mW; derate above +70℃ by: 100mW/℃; (8)Operating Temperature Ranges: -40℃ to +85℃; (9)Storage Temperature Range: -65℃ to +150℃; (10)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX742EWP features: (1)Specs Guaranteed for In-Circuit Performance; (2)Load Currents to ±2A; (3)4.2V to 10V Input-Voltage Range; (4)Switches From ±15V to ±12V Under Logic Control; (5)±4% Output Tolerance Max Over Temp, Line, and Load; (6)90% Typ Efficiency; (7)Low-Noise, Current-Mode Feedback; (8)Cycle-by-Cycle Current Limiting; (9)Undervoltage Lockout and Soft-Start; (10)100kHz or 200kHz Operation.
