Product Summary
The MC100EPT22D is a dual LVTTL/LVCMOS to differential LVPECL translator. Because LVPECL (Positive ECL) levels are used only +3.3V and ground are required. The small outline 8-lead SOIC package and the single gate of the MC100EPT22D makes it ideal for those applications where space, performance, and low power are at a premium. Because the mature MOSAIC 5 process is used, low cost and high speed can be added to the list of features.
Parametrics
MC100EPT22D absolute maximum ratings: (1)VCC, Power Supply when GND = 0 V: 6 V; (2)VI, Input Voltage when GND = 0 V, VI≦VCC: 6 to 0 V; (3)Iout, Output Current: Continuous: 50 mA; Surge: 100 mA; (4)TA, Operating Temperature Range: -40 to +85℃; (5)Tstg, Storage Temperature Range: -65 to +150℃; (6)θJA, Thermal Resistance (Junction to Ambient): 0 lfpm: 190℃/W; (7)500lfpm: 130℃/W; (8)θJC, Thermal Resistance (Junction to Case), Standard Board: 41 to 44℃/W.
Features
MC100EPT22D features: (1)420 ps Typical Propagation Delay; (2)Maximum Frequency > 1.1 GHz; (3)Operating Range: VCC = 3.0 V to 3.6 V with GND = 0 V; (4)PNP LVTTL Inputs for Minimal Loading; (5)Q Output will default HIGH with inputs open; (6)The 100 Series contains temperature compensation; (7)Pb-Free Packages are Available.

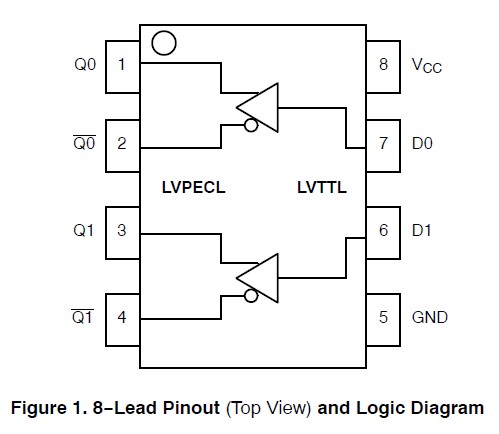

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC100EPT22D |
ON Semiconductor |
Translation - Voltage Levels 3.3V LVTTL/LVCMOS |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC100EPT22DG |
ON Semiconductor |
Translation - Voltage Levels 3.3V LVTTL/LVCMOS to Diff LVPECL |
Data Sheet |
|
|
||||||||||||
|
MC100EPT22DTG |
ON Semiconductor |
Translation - Voltage Levels 3.3V LVTTL/LVCMOS to Diff LVPECL |
Data Sheet |
|
|
||||||||||||
|
MC100EPT22DR2G |
ON Semiconductor |
Translation - Voltage Levels 3.3V LVTTL/LVCMOS to Diff LVPECL |
Data Sheet |
|
|
||||||||||||
|
MC100EPT22DR2 |
ON Semiconductor |
Translation - Voltage Levels 3.3V LVTTL/LVCMOS |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC100EPT22DT |
ON Semiconductor |
Translation - Voltage Levels 3.3V LVTTL/LVCMOS |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC100EPT22DTR2G |
ON Semiconductor |
Translation - Voltage Levels 3.3V LVTTL/LVCMOS to Diff LVPECL |
Data Sheet |
|
|
||||||||||||
|
MC100EPT22DTR2 |
ON Semiconductor |
Translation - Voltage Levels 3.3V LVTTL/LVCMOS |
Data Sheet |
Negotiable |
|
||||||||||||
