Product Summary
The NL10276AC30-04 is a kind of TFT (thin film transistor) active-matrix color liquid crystal display (LCD) module. The NL10276AC30-04 is composed of an amorphous silicon TFT attached to each signal electrode, a driving circuit, and a backlight. The NL10276AC30-04 has a built-in backlight with an inverter. The 38 cm (15.0 inch) diagonal display area contains 1024 × 768 pixels and can display 262,144 colors simultaneously. The typical applications of the NL10276AC30-04 include: (1)Desktop PCs; (2)Engineering workstations; (3)Display terminal for control systems; (4)Monitors for process controllers.
Parametrics
NL10276AC30-04 absolute maximum ratings: (1)Supply voltage: VCC: –0.3 to +6.0 V; VDDB: –0.3 to +14 V; (2)Logic input voltage, VI: –0.3 to VCC + 0.3 V; (3)Logic input voltage (backlight-logic signal), VIBL1: –0.3 to +5.5 V; (4)Logic input voltage (backlight-BRTL signal), VIBL2: –0.3 to +1.5 V at Ta = 25℃; (5)Storage temp., TST: –20 to +60 ℃; (6)Operating temp., TOP: 0 to +50 ℃ at Module surface.
Features
NL10276AC30-04 features: (1)Wide viewing angle (with retardation film); (2)High luminance; (3)Low reflection; (4)LVDS interface (equivalent to the THC63LVDF64A, THine Electronics, Inc.); (5)Incorporated edge-type backlight (two lamps, inverter) and replaceable lamp holder.

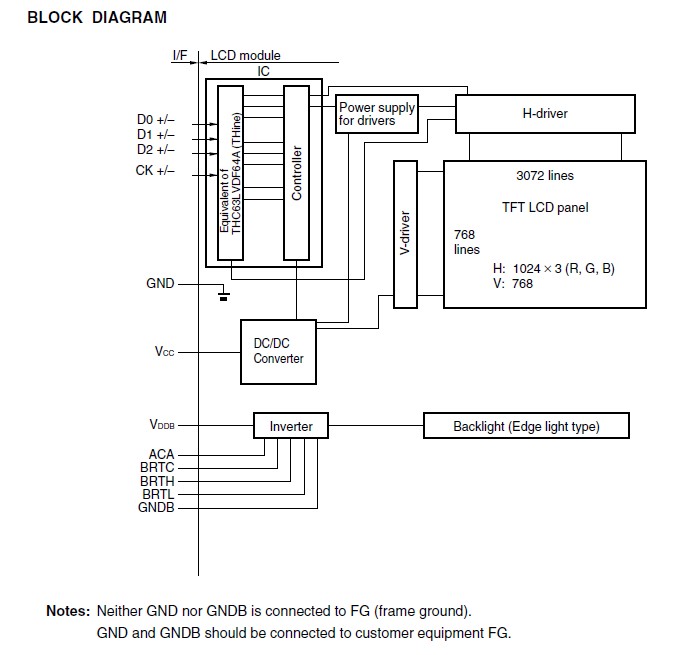

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NL10276AC30-04R |
Other |
|
Data Sheet |
Negotiable |
|
||||||
