Product Summary

The NL17SZ00DFT2G is a kind of single 2-input NAND Gate in two tiny footprint packages. The NL17SZ00DFT2G performs much as LCX multi-gate products in speed and drive.

Parametrics

NL17SZ00DFT2G absolute maximum ratings: 1)VCC,DC Supply Voltage: -0.5 to +7.0 V; (2)VIN,DC Input Voltage: -0.5 to +7.0 V; (3)VOUT,DC Output Voltage: -0.5 to to VCC + 0.5 V; (4)IIK,DC Input Diode Current: -50 mA; (5)IOK,DC Output Diode Current: -50 mA; (6)IOUT,DC Output Sink Current: -50 mA; (7)ICC,DC Supply Current per Supply Pin: -100 mA; (8)TSTG,Storage Temperature Range: -65 to +150 ℃; (9)TL,Lead Temperature, 1 mm from Case for 10 Seconds: 260 ℃; (10)TJ,Junction Temperature Under Bias: +150 ℃; (11)θJA,Thermal Resistance: 350℃/W; (12)PD,Power Dissipation in Still Air at 85℃: 186mW.

Features

NL17SZ00DFT2G features: (1)Tiny SOT-353 and SOT-553 Packages; (2)2.7 ns TPD at 5 V (typ); (3)Source/Sink 24 mA at 3.0 V; (4)Over-Voltage Tolerant Inputs; (5)Pin For Pin with NC7SZ00P5X, TC7SZ00FU and TC7SZ00AFE; (6)Chip Complexity: FETs = 20; (7)Designed for 1.65 V to 5.5 V VCC Operation; (8)Pb-Free Packages are Available.

Diagrams

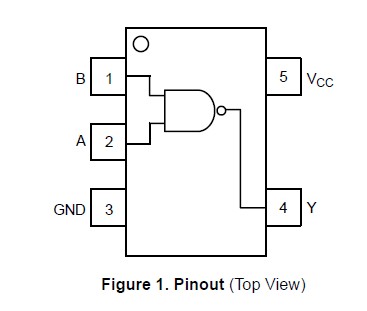

NL17SZ00DFT2G circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
NL17SZ00DFT2G
NL17SZ00DFT2G
ON Semiconductor
Gates (AND / NAND / OR / NOR) 1.65-5.5V Single 2-Input NAND
Data Sheet
0-1: $0.21
1-25: $0.12
25-100: $0.09
100-500: $0.05
