Product Summary
The EL6238CLZ is a high performance, dual output, laser driver for writeable super-comb’ CD - DVD drive. The ENA pin enables the chip, while the SEL1 pin selects the IOUT pin. Various waveforms can be generated where the amplitude is determined by the currents flowing into IINR, IIN2, IIN3, and IIN4. The timing is determined by the signals at OUTEN2, OUTEN3, and OUTEN4. The EL6238CLZ is enabled when OSCEN is high. The amplified IINR current of the selected channel is enabled when the ENA pin is high. The total output current is the sum of the read current, the enabled write currents, and the oscillator current when enabled. The application of the EL6238CLZ is Super Combo drives.
Features
EL6238CLZ features: (1)Two channels for CD or DVD ; (2)Voltage-controlled output current source requiring one external set resistor per channel ; (3)Rise time = 0.8ns ; (4)Fall time = 0.8ns ; (5)Channel 2 to 270mA max ; (6)Channel 3 to 200mA max ; (7)Channel 4 to 100mA max ; (8)On-chip oscillator with frequency and amplitude control by use of external resistors to ground ; (9)Oscillator frequency to 600MHz ; (10)Oscillator amplitude to 100mAP-P ; (11)Single +5V supply (±10%) ; (12)Chip enables for power savings ; (13)Pb-free available (RoHS compliant).

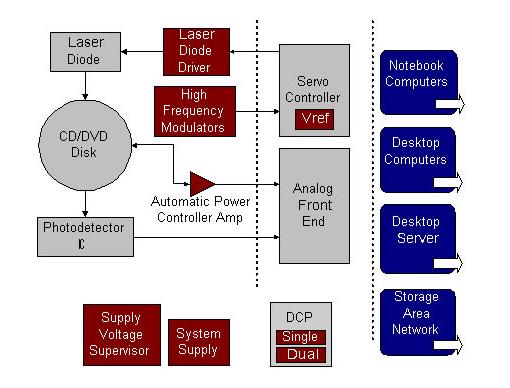

Diagrams
 |
