Product Summary

The EL7457CSZ is a high speed, non-inverting, quad CMOS driver. It is capable of running at clock rates up to 40MHz and features 2A peak drive capability and a nominal on-resistance of just 3Ω. The EL7457CSZ is ideal for driving highly capacitive loads, such as storage and vertical clocks in CCD applications. It is also well suited to ATE pin driving, level-shifting, and clock-driving applications.

Parametrics

EL7457CSZ absolute maximum ratings: (1)Supply Voltage (VS+ to VS-): +18V; (2)Input Voltage: VS- -0.3V, VS+ +0.3V; (3)Continuous Output Current: 100mA; (4)Storage Temperature Range: -65 to +150℃; (5)Ambient Operating Temperature: -40 to +85℃; (6)Maximum Die Temperature: +125℃.

Features

EL7457CSZ features: (1)Clocking speeds up to 40MHz; (2)4 channels; (3)12ns tR/tF at 1000pF CLOAD; (4)1ns rise and fall time match; (5)1.5ns prop delay match; (6)Low quiescent current - <1mA; (7)Fast output enable function - 12ns; (8)Wide output voltage range: 8V ≥ VL ≥ -5V; -2V ≤ VH ≤ 16.5V; (9)2A peak driver; (10)3Ω on resistance; (11)Input level shifters; (12)TTL/CMOS input-compatible; (13)Pb-free available (RoHS compliant).

Diagrams

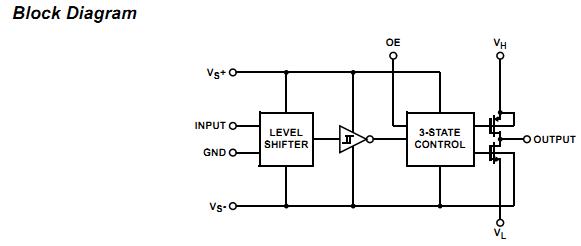

EL7457CSZ block diagram
