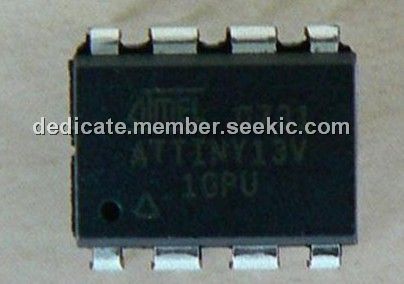

ATTINY13V-10PU

low-power CMOS 8-bit microcontroller

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: ATTINY13V-10PU

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. vivian's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-03-02

From Other Seller

Part Number:ATTINY13V-10PU
US $1.00 - 2.00
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

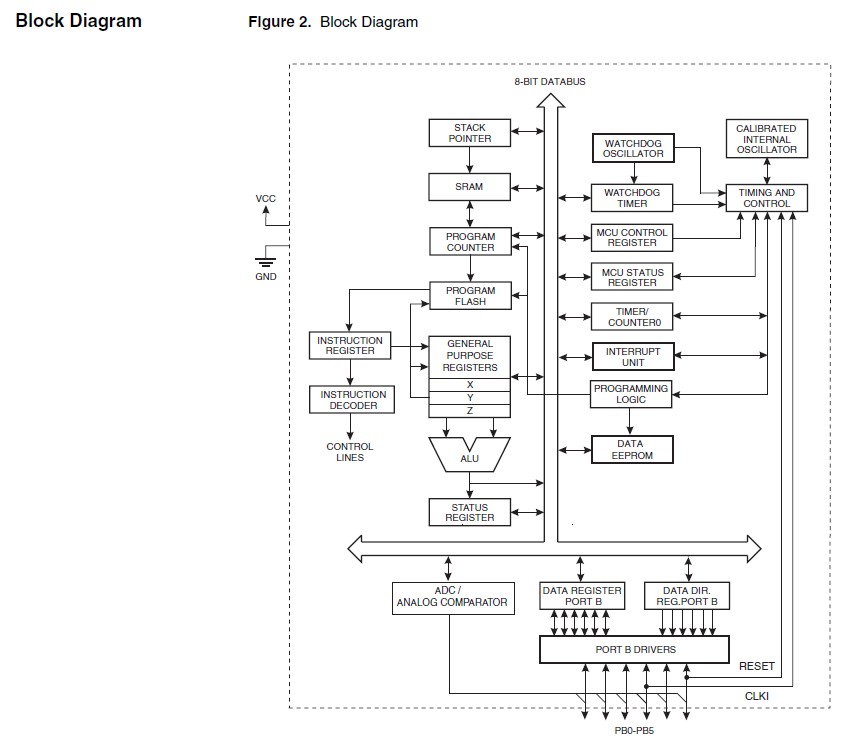

The ATTINY13V-10PU is a kind of low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. With powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, which allows the system designer to optimize power consumption versus processing speed. It is available in 8P3 package.

Parametrics

Absolute maximum ratings: (1)Operating Temperature: -55℃to +125℃; (2)Storage Temperature: -65℃to +150°C; (3)Voltage on any Pin except RESET with respect to Ground: -0.5V to VCC+0.5V; (4)Voltage on RESET with respect to Ground: -0.5V to +13.0V; (5)Maximum Operating Voltage: 6.0V; (6)DC Current per I/O Pin: 40.0 mA; (7)DC Current VCC and GND Pins: 200.0 mA.

Features

Features: (1)High Performance, Low Power AVR8-Bit Microcontroller; (2)Advanced RISC Architecture: 120 Powerful Instructions Most Single Clock Cycle Execution; 32 x 8 General Purpose Working Registers; Fully Static Operation; Up to 20 MIPS Througput at 20 MHz; (3)Peripheral Features: One 8-bit Timer/Counter with Prescaler and Two PWM Channels; 4-channel, 10-bit ADC with Internal Voltage Reference; Programmable Watchdog Timer with Separate On-chip Oscillator; On-chip Analog Comparator; (4)Special Microcontroller Features: debugWIRE On-chip Debug System; In-System Programmable via SPI Port; External and Internal Interrupt Sources; Low Power Idle, ADC Noise Reduction, and Power-down Modes; Enhanced Power-on Reset Circuit; Programmable Brown-out Detection Circuit; Internal Calibrated Oscillator; (5)Industrial Temperature Range; (6)Low Power Consumption: Active Mode: 1 MHz, 1.8V: 240μA; Power-down Mode: < 0.1μA at 1.8V.
