MAX3516EUPFK

programmable-gain amplifier, 20-Pin TSSOP-EP, +5VDC, 56 dB, 120mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.50

PartNumber:: MAX3516EUPFK

Brand:: Maxim Integrated Products - Maxim | Pack: SSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. vivian's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-25

From Other Seller

Part Number:MAX3516EUPFK
US $0.10 - 0.50
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

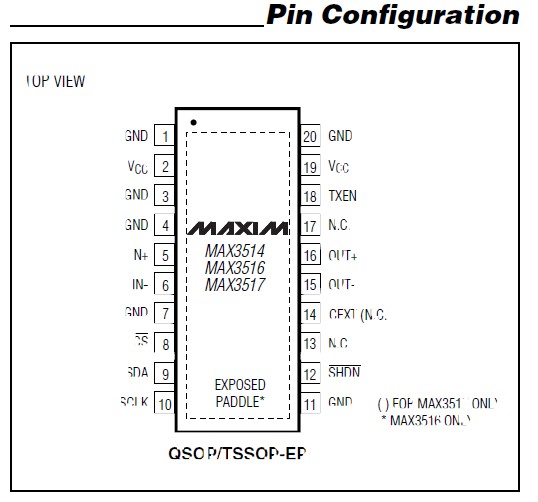

Product Summary

The MAX3516EUPFK is a kind of programmable-gain amplifier, which is designed for use in CATV upstream applications, such as DOCSIS/EuroDOCSIS and DVB Cable, Modems. The MAX3516EUPFK drives up to +64dBmV (QPSK). The MAX3516EUPFK is a higher power version of the MAX3514 with 3dB more gain output power capability, and is offered in a smaller thermally enhanced TSSOP-EP package.The MAX3516EUPFK operates from a single +5VDC supply and draw 120mA during transmit (100% duty cycle, +61dBmV out). Additionally,the MAX3516EUPFK is shut off between bursts to minimize noise and save power while still maintaining a match at the output port. Shutdown mode disables all circuitry and reduces current consumption to 10μA (typ). The typical applications of MAX3516EUPFK include: (1)DOCSIS/EuroDOCSIS and DVB Cable; (2)Modems; (3)OpenCable Set-Top Boxes; (4)Telephony-Over-Cable; (5)CATV Status Monitors.

Parametrics

MAX3516EUPFK absolute maximum ratings: (1)VCC, OUT+, OUT-: -0.3V to +10.0V; (2)Input Voltage Levels (all inputs): -0.3V to (VCC + 0.3V); (3)Continuous Input Voltage (IN+, IN-): 2Vp-p; (4)Continuous Current (OUT+, OUT-): 120mA; (5)Continuous Power Dissipation (TA = +70℃) 20-Pin TSSOP-EP (derate 27mW/℃ above TA = +70℃): 2200mW; (6)Operating Temperature Range: -40℃ to +85℃; (7)Junction Temperature: +150℃; (8)Storage Temperature Range: -65℃ to +150℃; (9)Lead Temperature (soldering, 10s): +300℃.

Features

MAX3516EUPFK features: (1)Accurate Gain Control; (2)Gain Programmable in 0.5dB Steps; (3)56dB of Gain Control Range; (4)-55dBc Harmonic Distortion at 65MHz Input; (5)Low Burst On/Off Transient; (6)High Efficiency: 35mA at +34dBmV Out; 8mA Transmit Disable Mode.
