Product Summary
The MAX7432EUD is a standard definition video reconstruction filter and buffer, which is low-cost, high-performance replacements for standard discrete filter and buffer solutions.The MAX7432EUD is ideal for anti-aliasing and DAC smoothing video applications, when analog video is reconstructed from a digital data stream. These devices require a single +5V supply and the filters have a cutoff frequency optimized for NTSC, PAL, and standard definition digital TV (SDTV) video signals. The MAX7432EUD features Maxim’s single-pin bus interface to digitally control channel selection (IN_A or IN_B), adjust high-frequency boost, bypass the filter, configure luma vs. chroma operation, and control the output disable.The MAX7432EUD is widely used in set-top boxes, DVD players, hard-disk recorders and camcorders.
Parametrics
MAX7432EUD absolute maximum ratings: (1)VCC to GND: +6V; (2)All Other Pins to GND: -0.3V to (VCC + 0.3V); (3)Maximum Current Into Any Pin: ±50mA; (4)Continuous Power Dissipation (TA = +70℃) 14-Pin TSSOP (derate 9.1mW/℃ above +70℃): 727mW; (5)Operating Temperature Range: -40℃ to +85℃; (6)Storage Temperature Range: -65℃ to +150℃; (7)Junction Temperature: +150℃; (8)Lead Temperature (soldering, 10s): +300℃.
Features
MAX7432EUD features: (1)Ideal for CVBS, Y/C (S-Video), and RGB (Y Pb Pr) Outputs for NTSC, PAL, and SDTV; (2)6th-Order Lowpass Filter; (3)Drives Two 150Ω Video Loads; (4)Four Levels of Passband High-Frequency Boost Control; (5)Input 2 to 1 Multiplexer; (6)Output Disable; (7)Filter Bypassing; (8)+5V Single-Supply Voltage; (9)14-Pin TSSO Package.

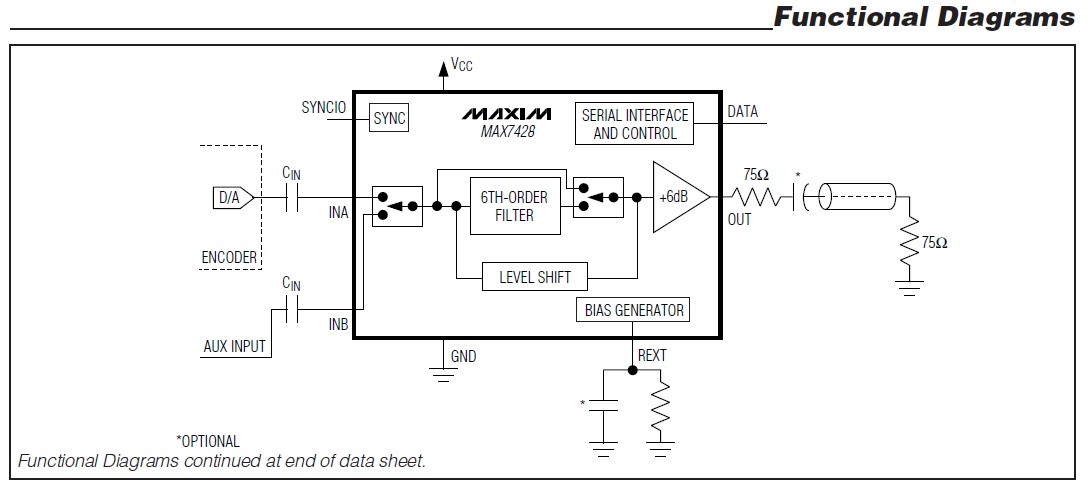

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MAX7432EUD |
Maxim Integrated Products |
Active Filters |
Data Sheet |
Negotiable |
|
|||||||||||||
MAX7432EUD/GG8 |
Maxim Integrated Products |
Active Filters |
Data Sheet |
Negotiable |
|
|||||||||||||
MAX7432EUD-T |
Maxim Integrated Products |
Active Filters |
Data Sheet |
Negotiable |
|
|||||||||||||
MAX7432EUD+ |
Maxim Integrated Products |
Video ICs Standard Def Video Reconstruction Filtr |
Data Sheet |
|
|
|||||||||||||
MAX7432EUD+T |
Maxim Integrated Products |
Video ICs Standard Def Video Reconstruction Filtr |
Data Sheet |
|
|
