Product Summary

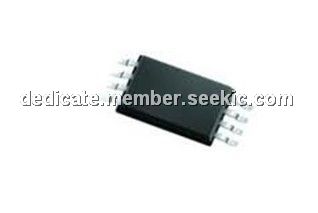

The MC100EPT21DT is a kind of Differential LVPECL/LVDS/CML to LVTTL/LVCMOS translator. Because LVPECL (Positive ECL),LVDS, and positive CML input levels and LVTTL/LVCMOS output levels are used, only +3.3 V and ground are required. The small outline 8-SOIC package makes the MC100EPT21DT ideal for applications which require the translation of a clock or data signal.
Parametrics
MC100EPT21DT absolute maximum ratings: (1)VCC, PECL Power Supply when GND = 0 V: 3.8 V; (2)VIN, PECL Input Voltage when GND = 0 V, VI≦VCC: 0 to 3.8 V; (3)IBB, VBB Sink/Source: ±0.5 mA; (4)TA, Operating Temperature Range: -40 to +85℃; (5)Tstg, Storage Temperature Range: -65 to +150℃; (6)θJA, Thermal Resistance (Junction to Ambient): 0 lfpm: 185℃/W; (7)500lfpm: 140℃/W; (8)θJC, Thermal Resistance (Junction to Case), Standard Board: 41 to 44℃/W.
Features
MC100EPT21DT features: (1)1.4 ns Typical Propagation Delay; (2)Maximum Frequency > 275 MHz Typical; (3)LVPECL/LVDS/CML Inputs, LVTTL/LVCMOS Outputs; (4)24 mA TTL outputs; (5)Operating Range: VCC = 3.0 V to 3.6 V with GND = 0 V; (6)The 100 Series Contains Temperature Compensation; (7)VBB Output; (8)Pb-Free Packages are Available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC100EPT21DT |
ON Semiconductor |
Translation - Voltage Levels 3.3V Diff LVPECL |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC100EPT21DTG |
ON Semiconductor |
Translation - Voltage Levels 3.3V Diff LVPECL to LVTTL |
Data Sheet |
|
|
||||||||||||
|
MC100EPT21DTR2G |
ON Semiconductor |
Translation - Voltage Levels 3.3V Diff LVPECL to LVTTL |
Data Sheet |
|
|
||||||||||||
|
MC100EPT21DTR2 |
ON Semiconductor |
Translation - Voltage Levels 3.3V Diff LVPECL |
Data Sheet |
Negotiable |
|
||||||||||||
