Product Summary
The NL17SZ00XV5T2 is a kind of single 2-input NAND Gate in two tiny footprint packages. The NL17SZ00XV5T2 performs much as LCX multi-gate products in speed and drive.
Parametrics
NL17SZ00XV5T2 absolute maximum ratings: 1)VCC,DC Supply Voltage: -0.5 to +7.0 V; (2)VIN,DC Input Voltage: -0.5 to +7.0 V; (3)VOUT,DC Output Voltage: -0.5 to to VCC + 0.5 V; (4)IIK,DC Input Diode Current: -50 mA; (5)IOK,DC Output Diode Current: -50 mA; (6)IOUT,DC Output Sink Current: -50 mA; (7)ICC,DC Supply Current per Supply Pin: -100 mA; (8)TSTG,Storage Temperature Range: -65 to +150 ℃; (9)TL,Lead Temperature, 1 mm from Case for 10 Seconds: 260 ℃; (10)TJ,Junction Temperature Under Bias: +150 ℃; (11)θJA,Thermal Resistance: 496℃/W; (12)PD,Power Dissipation in Still Air at 85℃: 135mW.
Features
NL17SZ00XV5T2 features: (1)Tiny SOT-353 and SOT-553 Packages; (2)2.7 ns TPD at 5 V (typ); (3)Source/Sink 24 mA at 3.0 V; (4)Over-Voltage Tolerant Inputs; (5)Pin For Pin with NC7SZ00P5X, TC7SZ00FU and TC7SZ00AFE; (6)Chip Complexity: FETs = 20; (7)Designed for 1.65 V to 5.5 V VCC Operation; (8)Pb-Free Packages are Available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NL17SZ00XV5T2 |
|

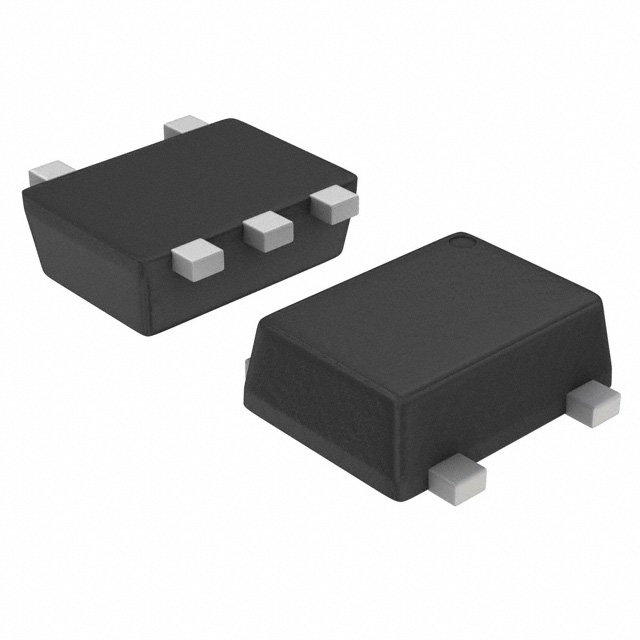

IC GATE NAND SINGLE 2INP SOT553 |
Data Sheet |
Negotiable |
|
||||||||||||
 |
NL17SZ00XV5T2G |
ON Semiconductor |
Gates (AND / NAND / OR / NOR) 1.65-5.5V Single 2-Input NAND |
Data Sheet |
|
|
||||||||||||
