IDT7207L25PI

CMOS asynchronous fifo, 32,768 x 9, 25ns, 28DIP, monolithic dual-port memory buffer, 28.5MHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~2.00

PartNumber:: IDT7207L25PI

Brand:: Integrated Device Technology - IDT | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. vivian's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-30

From Other Seller

Part Number:IDT7207L25PI
US $0.50 - 2.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

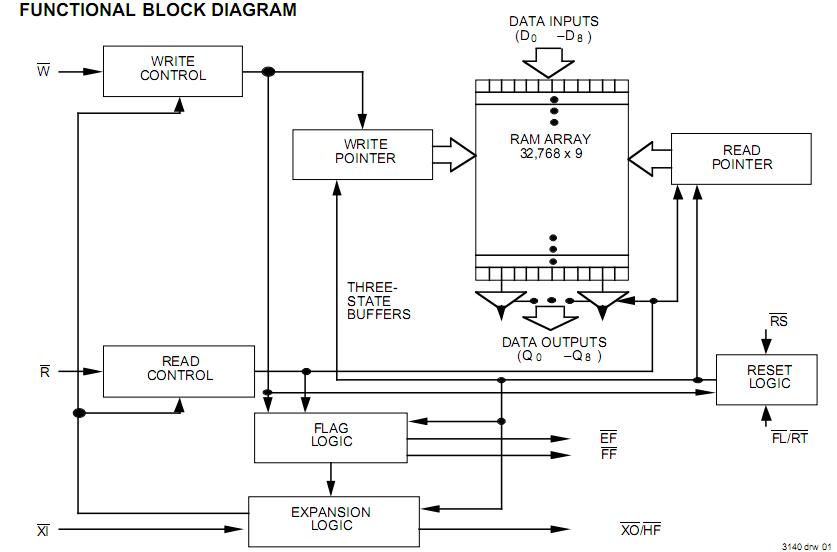

The IDT7207L25PI is a monolithic dual-port memory buffer with internal pointers that load and empty data on a first-in/first-out basis. The IDT7207L25PI uses Full and Empty flags to prevent data overflow and underflow and expansion logic to allow for unlimited expansion capability in both word size and depth. The IDT7207L25PI is designed for applications requiring asynchronous and simultaneous read/writes in multiprocessing, rate buffering, and other applications.

Parametrics

IDT7207L25PI absolute maximum ratings: (1)Terminal Voltage with Respect to GND: –0.5 to + 7.0 V; (2)Operating Temperature: 0 to +70 ℃; (3)Temperature Under Bias: –55 to +125 ℃; (4)Storage Temperature: –55 to + 125 ℃; (5) DC Output Current: 50 mA.

Features

IDT7207L25PI features: (1)32768 x 9 storage capacity; (2)High-speed: 15ns access time; (3)Low power consumption: Active: 660mW (max.), Power-down: 44mW(max.); (4)Asynchronous and simultaneous read and write; (5)Fully expandable in both word depth and width; (6)Pin and functionally compatible with IDT720x family; (7)Status Flags: Empty, Half-Full, Full; (8)Retransmit capability; (9)High-performance CMOS technology; (10)Military product compliant to MIL-STD-883, Class B; (11)Industrial temperature range (-40℃ to +85℃) is available, tested to military electrical specifications.
