NC7SP57P6X

Universal Configurable 2-Input Logic Gate, SC70-5, 0.9V to 3.6V, ± 50 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.50

PartNumber:: NC7SP57P6X

Brand:: Fairchild Semiconductor - Fairchild | Pack: SOT | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. vivian's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-25

From Other Seller

Part Number:NC7SP57P6X
US $0.10 - 0.50
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The NC7SP57P6X is a kind of Universal Configurable 2-Input Logic Gate. Ideal for applications where battery life is critical, the NC7SP57P6X is designed for ultra low power consumption within the VCC operating range of 0.9V to 3.6V. The NC7SP57P6X is capable of being configured for 1 of 5 unique 2-input logic functions.

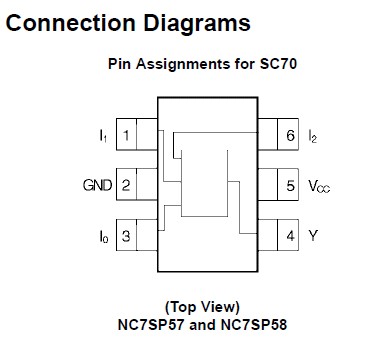

Parametrics

NC7SP57P6X absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to +4.6V; (2)DC Input Voltage (VIN): -0.5V to +4.6V; (3)DC Output Voltage (VOUT): HIGH or LOW State: -0.5V to VCC +0.5V; (4)VCC = 0V: -0.5V to 4.6V; (5)DC Input Diode Current (IIK), VIN < 0V: ±50 mA; (6)DC Output Diode Current (IOK): VOUT < 0V -50 mA; VOUT > VCC +50 mA; (7)DC Output Source/Sink Current (IOH/IOL): ± 50 mA; (8)DC VCC or Ground Current per Supply Pin (ICC or Ground): ± 50 mA; (9)Storage Temperature Range (TSTG): -65℃ to +150℃.

Features

NC7SP57P6X features: (1)0.9V to 3.6V VCC supply operation; (2)3.6V overvoltage tolerant I/O at VCC from 0.9V to 3.6V; (3)tPD:5 ns typ for 3.0V to 3.6V VCC; 6 ns typ for 2.3V to 2.7V VCC;8 ns typ for 1.65V to 1.95V VCC;10 ns typ for 1.40V to 1.60V VCC;14 ns typ for 1.10V to 1.30V VCC;40 ns typ for 0.90V VCC; (4)Power-Off high impedance inputs and outputs; (5)Static Drive (IOH/IOL): ±2.6 mA @ 3.00V VCC;±2.1 mA @ 2.30V VCC;±1.5 mA @ 1.65V VCC;±1.0 mA @ 1.40V VCC;±0.5 mA @ 1.10V VCC;±20 μA @ 0.9V VCC; (6)Uses patented Quiet Series. noise/EMI reduction circuitry; (7)Ultra small MicroPak. leadfree package; (8)Ultra low dynamic power.
